QF-G822 Cable Crossover

Product Overview

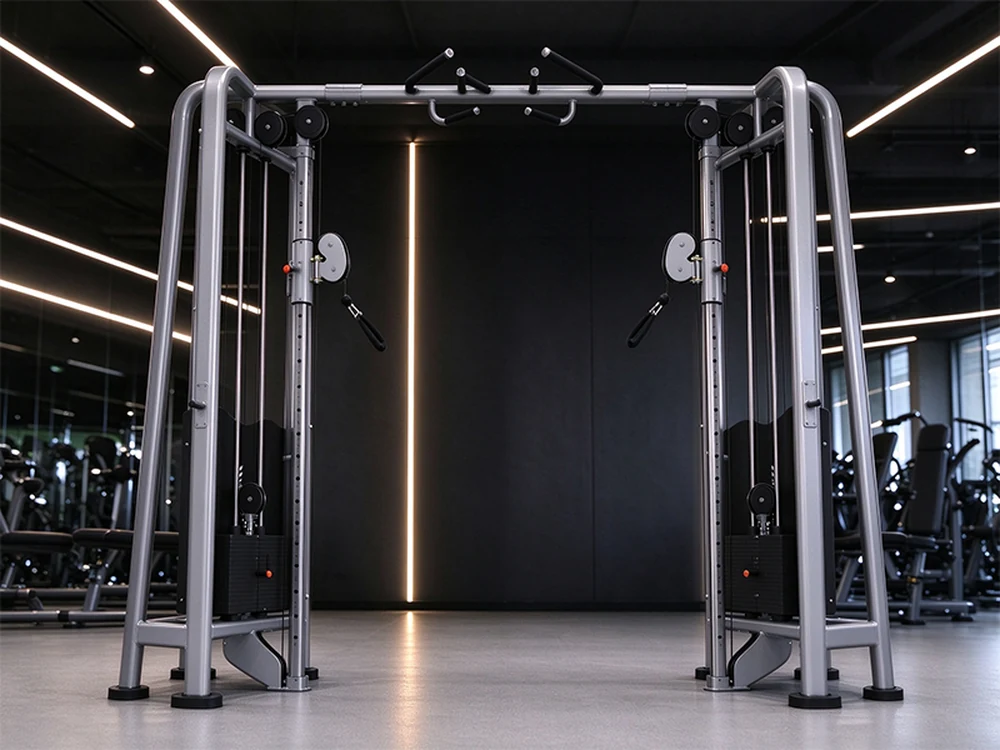

Two Towers, Two Stacks, One Frame

• Dual adjustable pulley station with a weight stack in each tower
• 80 kg stack per tower, 160 kg of resistance across the two columns
• Pulleys lock at multiple heights along the inner columns
• Multi-grip pull-up bar spans the top of the frame
• Open footprint 4340 mm wide with a cross member at mid height and at the base
• CE and ISO9001 certified; wooden box packing

Technical Specifications

Key Features

Dual 80 kg Stacks

Independent Resistance Left and Right

• One 80 kg stack in each tower
• Towers work independently, so single-arm sets are possible
• Pin selection on the inner face of each column
• Stack shrouds keep the plates enclosed
• Cables run over pulleys at the top of each tower

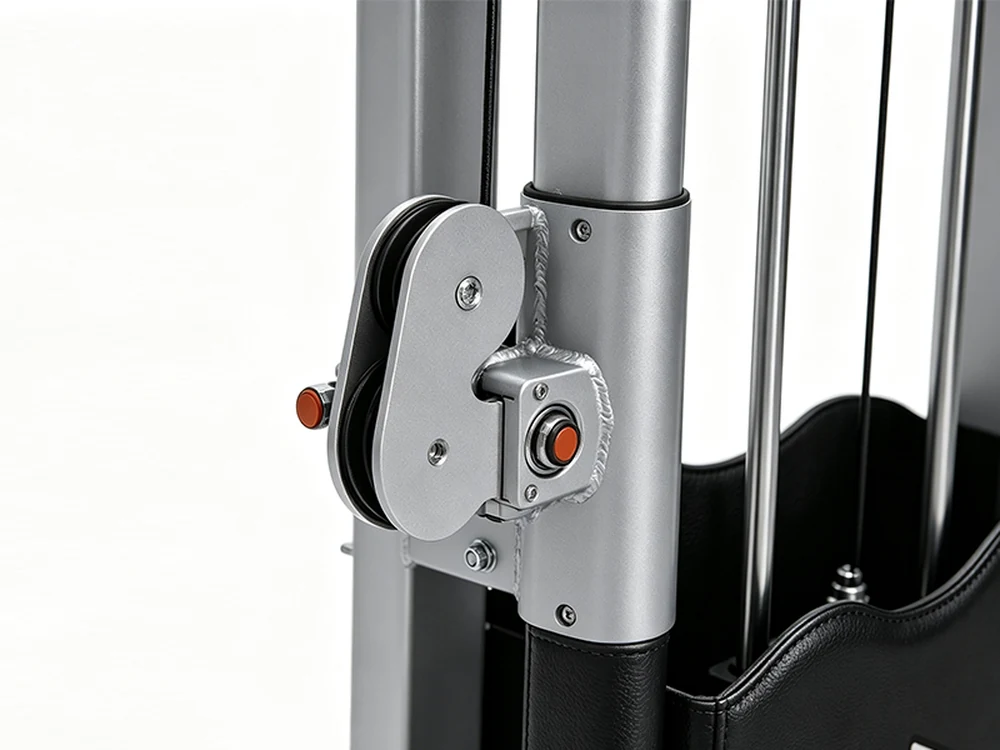

Adjustable Pulleys and Handles

Height Set in Seconds

• Pulley carriage locks at multiple heights on each column
• Single-handle straps supplied as standard
• Carabiner attachment allows other handles to be added
• Pulley position is read from the index holes on the column
• Each side can be set at a different height for cross-body work

Top Bar and Frame

Pull-Up Bar Included

• Multi-grip bar spans the top of the two towers
• Angled grips give wide, neutral and close hand positions
• Cross members tie the towers at mid height and at the base
• 2420 mm overall height suits standard gym ceilings
• Welded steel towers with levelling feet

Applications

Where the QF-G822 Fits

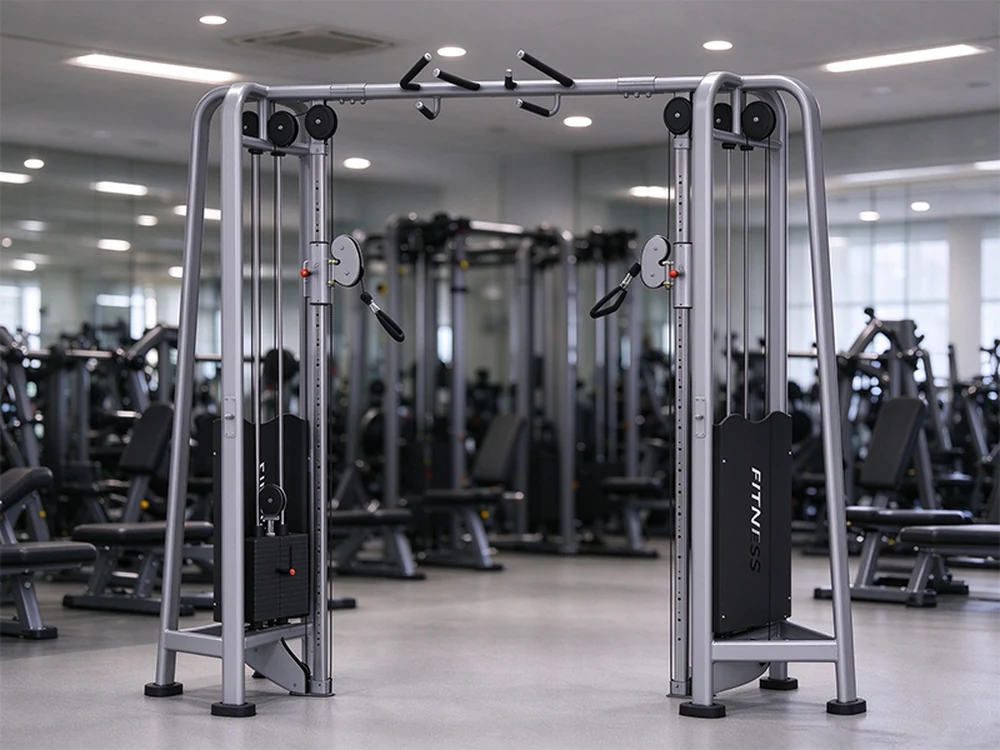

• Commercial gyms that need a cable station without a separate rig
• Functional-training zones using handles, ropes and straps
• Hotel and residential fitness rooms with wide but shallow floor space
• Sports clubs running cable-based accessory work
• Facilities specifying custom frame colours and logos

Packing and Shipment

• Two towers and the top bar are packed in separate wooden boxes
• Net weight 340 kg, gross weight 380 kg
• Assembly on site with two people; fixings and assembly notes included
