Product Overview

Build a Level Padel Court on Uneven Ground

• 150–800 mm adjustable support feet
• Designed for uneven and sloped ground
• Modular steel foundation structure
• 30 modular frames
• 140 × 20 mm high-quality solid plastic board
• Standard configuration: QF-BQ04 Padel Court
• Customization available

Technical Specifications

Item	Specification
Product Type	Adjustable Modular Padel Court Foundation
Main Application	Uneven Ground
Adjustable Support Feet	150–800 mm
Outer Frame	50 × 150 × 3.0 mm High-Quality Steel Tube
Internal Beams	40 × 80 × 3.0 mm High-Quality Steel Tube
Purlins	30 × 50 × 2.0 mm High-Quality Steel Tube
Modular Frames	30 Frames
Fasteners	304 Stainless Steel
Foundation Surface	High-Quality Solid Plastic Board
Board Size	140 × 20 mm
Standard Configuration	QF-BQ04 Padel Court
Customization	Other Padel Court Models Available

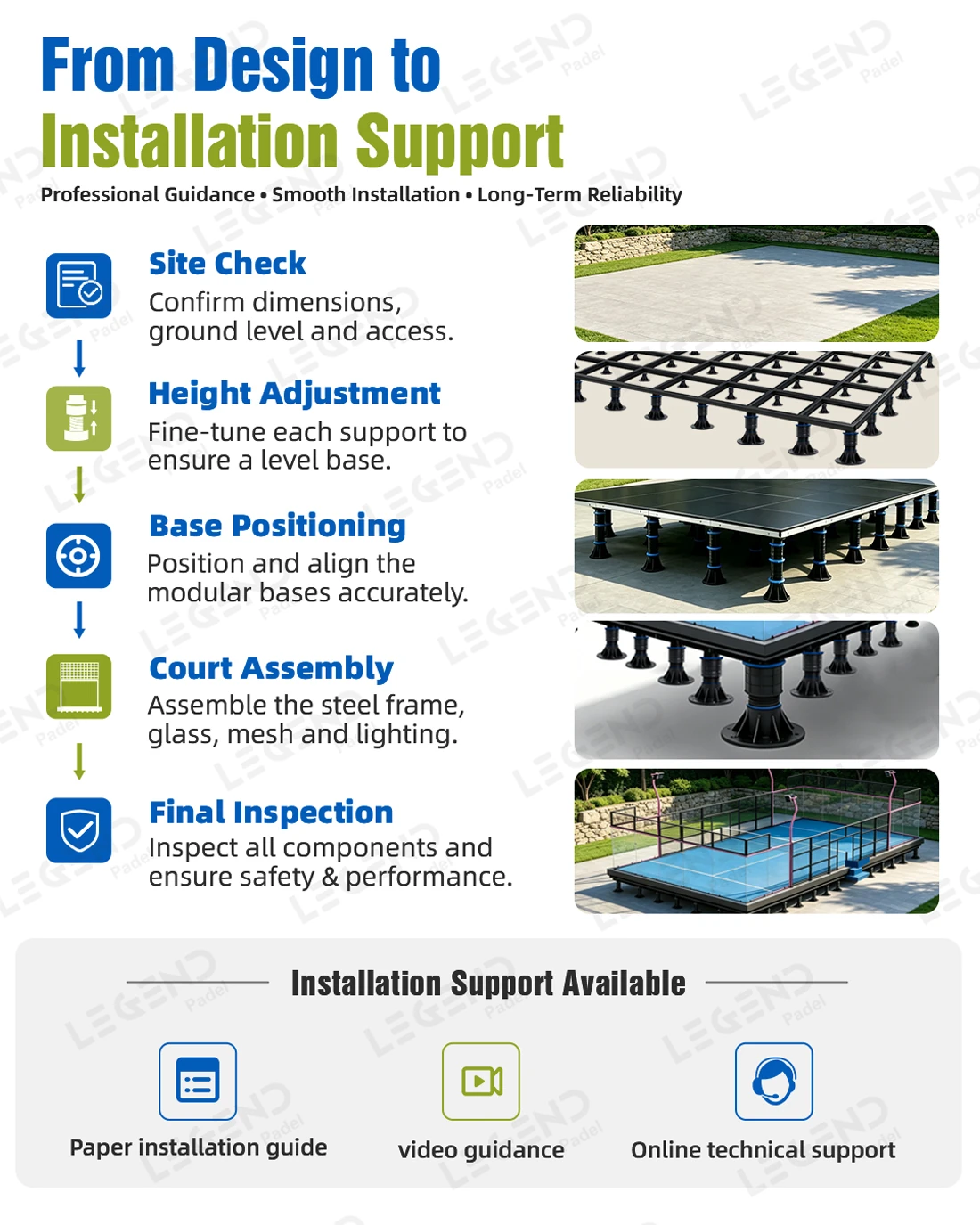

Assembly Process

1. 01 — Position the Modules
2. 02 — Connect the Frames
3. 03 — Adjust the Support Feet
4. 04 — Level the Foundation
5. 05 — Install the Padel Court

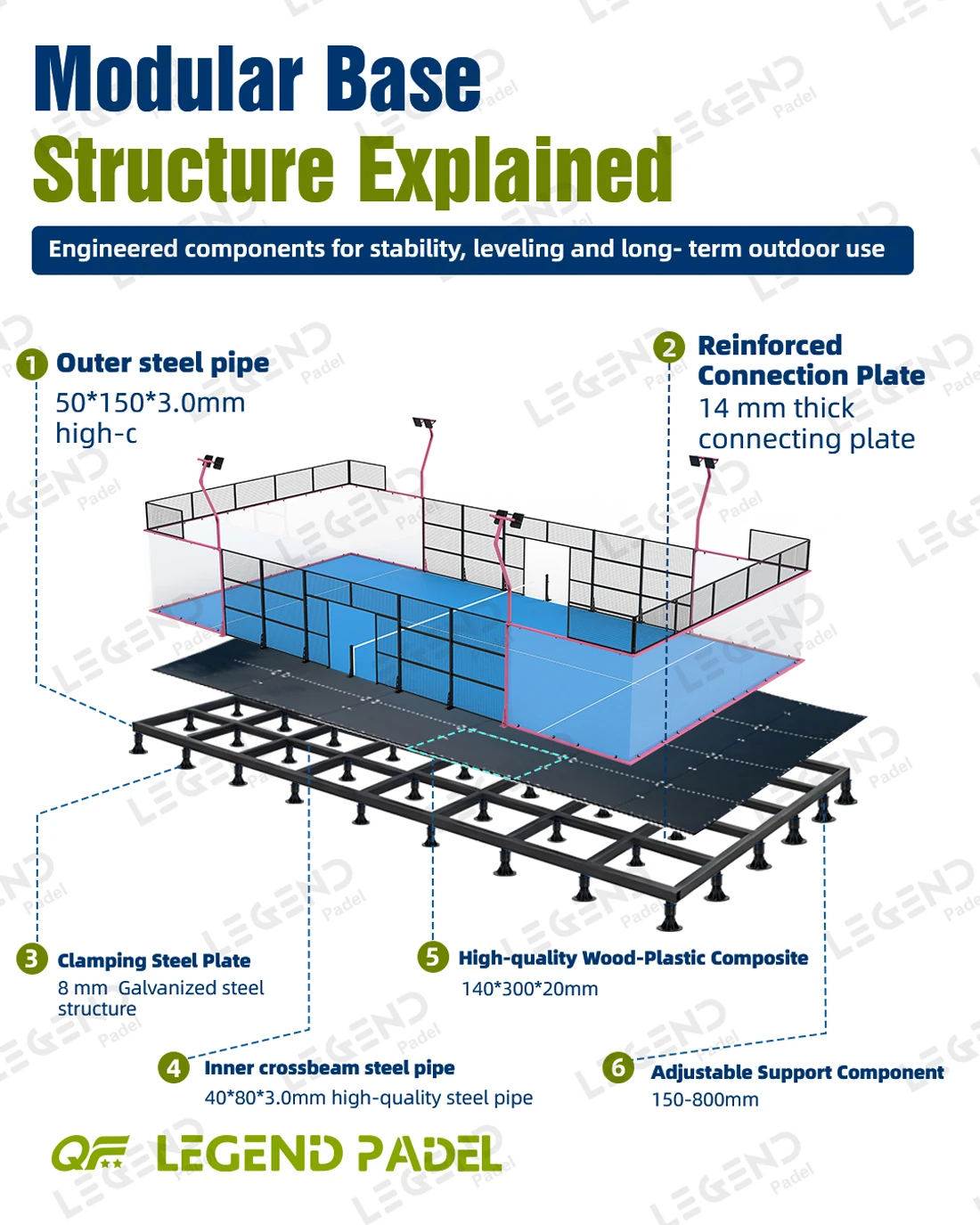

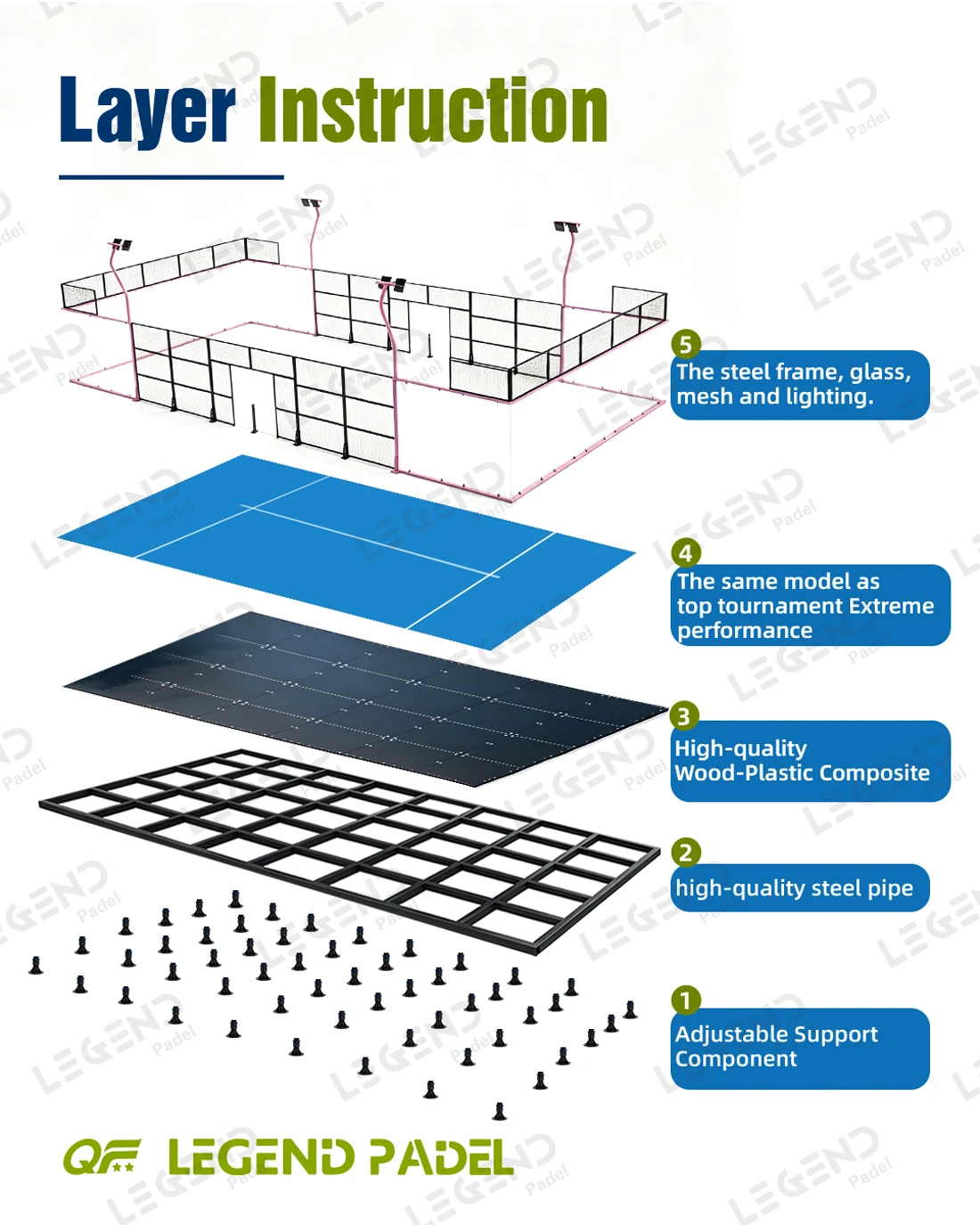

Foundation Structure

Padel Court

Artificial Turf

140 × 20 mm Solid Plastic Board

Steel Foundation Frame

Adjustable Support Feet

Existing Ground

Key Advantages and Features

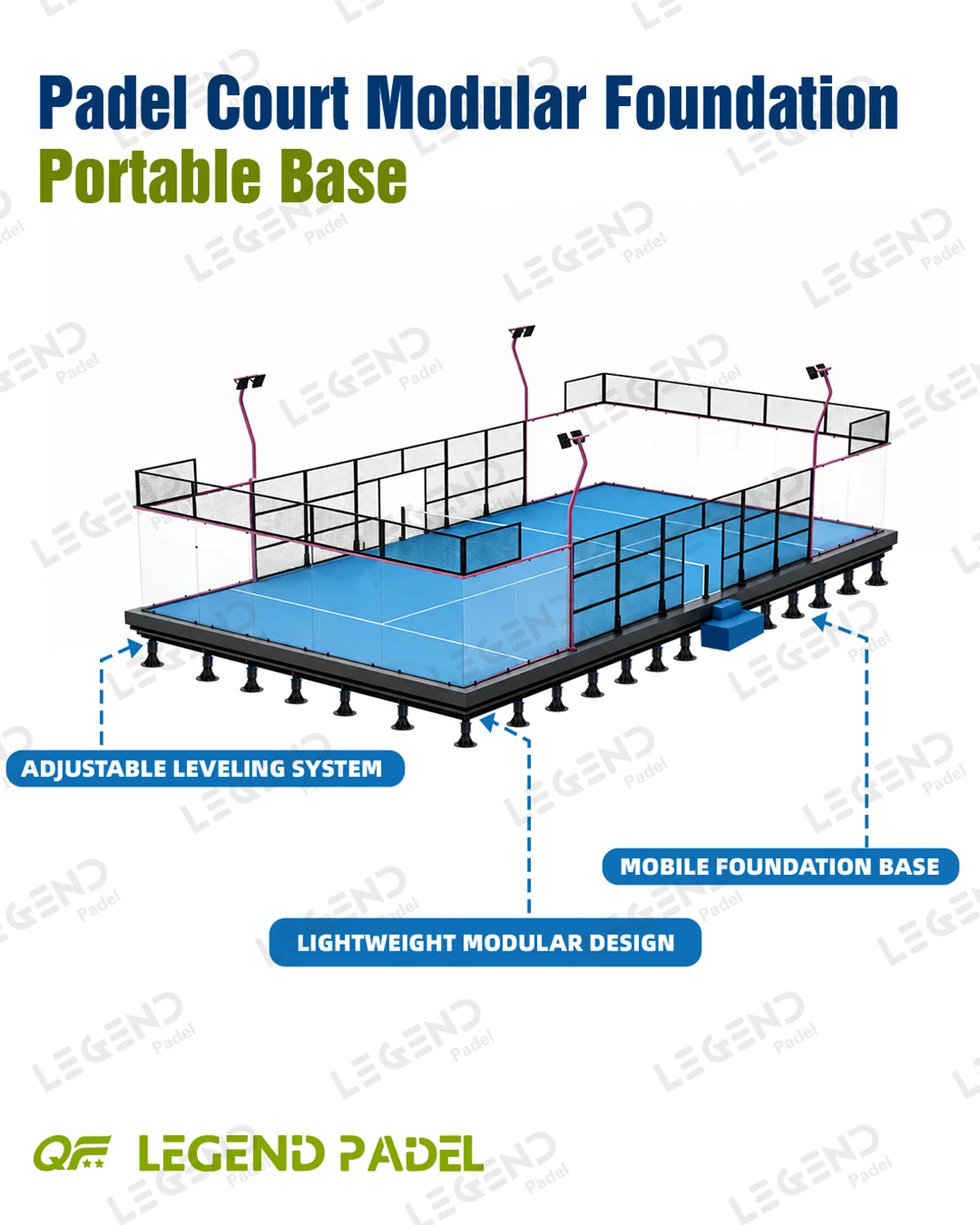

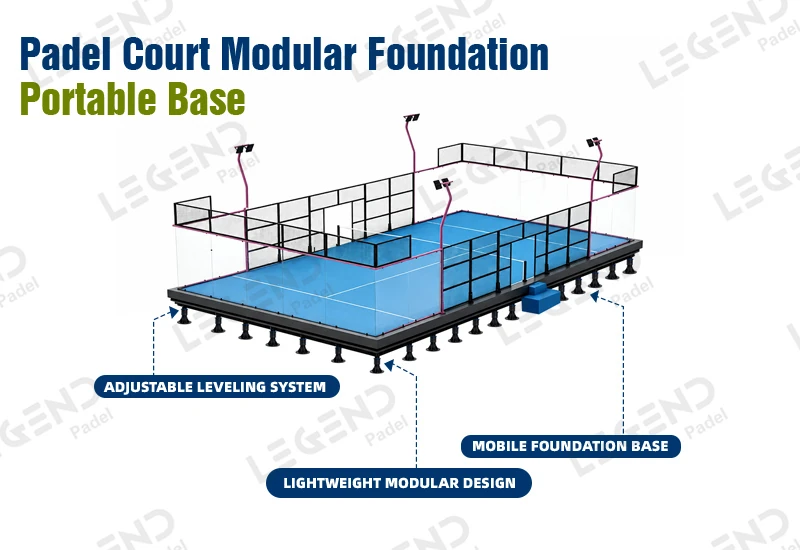

150–800 mm Adjustable Support Feet

Level the Foundation According to Your Site

• 150–800 mm adjustment range
• Adjustable according to actual ground conditions
• Individual height adjustment
• Compensates for ground level differences
• Helps create a level foundation platform
• Suitable for sloped and uneven sites

Modular Steel Foundation Structure

Engineered for Stable Support

• Outer Frame — 50 × 150 × 3.0 mm high-quality steel tube
• Internal Beams — 40 × 80 × 3.0 mm high-quality steel tube
• Purlins — 30 × 50 × 2.0 mm high-quality steel tube
• Welded modular steel framework
• Designed to provide stable support for the padel court

30 Modular Frames & On-Site Assembly

Designed for Efficient Installation

• 30 modular steel frames
• On-site assembly
• 304 stainless steel fasteners
• Easy transportation
• Flexible installation

High-Quality Solid Plastic Board Surface

140 × 20 mm Solid Plastic Board

• High-quality solid plastic board
• Board size: 140 × 20 mm
• Installed across the steel foundation frame
• Forms the foundation surface for the padel court

Compatible Padel Court Models

Standard & Customized Configuration

• Standard Configuration — QF-BQ04 Padel Court
• Customized Configuration — Other Padel Court Models Available
• Customized according to court dimensions
• Customized according to structural requirements
• Customized according to project conditions

Applications

Flexible Foundation for Different Project Conditions

• Hotels & Resorts
• Sports Clubs
• Commercial Developments
• Uneven Outdoor Sites
• Sloped Areas
• Existing Spaces with Elevation Differences
• Flexible Sports Projects

Installation & Technical Support

From Site Assessment to Padel Court Installation

• 01. Share Your Project Details — Project location, site conditions, number of courts, and preferred court model.
• 02. Site & Foundation Evaluation — Evaluate the site conditions and foundation requirements.
• 03. Customized Foundation Design — Develop customized solutions for different court models and site conditions.
• 04. Manufacturing & Quality Control — Manufacture foundation components according to approved specifications.
• 05. Delivery & Installation Support — Prepare modular components for shipment and provide installation support.

Why Choose an Adjustable Foundation?

A Smarter Solution for Uneven Ground

• Uneven ground solution
• Compensates for elevation differences
• Helps create a level foundation
• Reduces extensive ground leveling
• Adapts to different site conditions
• Provides greater installation flexibility
