As padel continues to expand into commercial clubs, hotels, resorts, rooftop facilities, and premium leisure spaces, court design has become an increasingly important consideration for developers and facility owners. Beyond basic playing performance, buyers are looking for solutions that combine structural safety, durability, visual appeal, and practical functionality.
The Special-Shaped Steel Pipe Panoramic Padel Court PD14 is designed for projects where both performance and architectural appearance matter. Unlike conventional courts using standard rectangular steel tubes, PD14 features a special-shaped steel pipe structure, integrated LED lighting, concealed connections, and panoramic tempered glass.
For businesses evaluating a panoramic padel court, understanding its structural design, specifications, and application advantages can help determine whether it is suitable for a particular sports facility project.
What Is a Special-Shaped Steel Pipe Panoramic Padel Court?
A special-shaped steel pipe panoramic padel court uses specially designed steel pipe sections to form the main structural framework of the court. Compared with conventional rectangular tube structures, the special-shaped design provides a more distinctive appearance while optimizing the overall structural configuration.
The PD14 combines this structural design with panoramic tempered glass to create a more open and visually integrated court environment. The court has a standard internal playing area of 20 meters long and 10 meters wide, while its overall external dimensions are 20.32 meters long × 10.32 meters wide × 5.98 meters high.
The PD14 is also designed with practical features for commercial applications, including concealed screw connections and an integrated linear LED lighting system.
Key Features of the PD14 Special-Shaped Steel Pipe Panoramic Padel Court
No Exposed Connection Plates for a Clean, Modern Appearance
One of the defining characteristics of PD14 is its concealed connection design.
The screws are integrated into the steel structure rather than being visibly exposed on external connection plates. This reduces visual clutter created by conventional exposed screws and connection plates, resulting in cleaner and more continuous structural lines.
The reduced number of external protruding components can also help minimize potential collision points during use. From a design perspective, the concealed connection structure gives the court a more modern and integrated appearance.
This makes the design particularly suitable for commercial clubs, hotels, resorts, and urban spaces where the appearance of the sports facility is part of the overall environment.

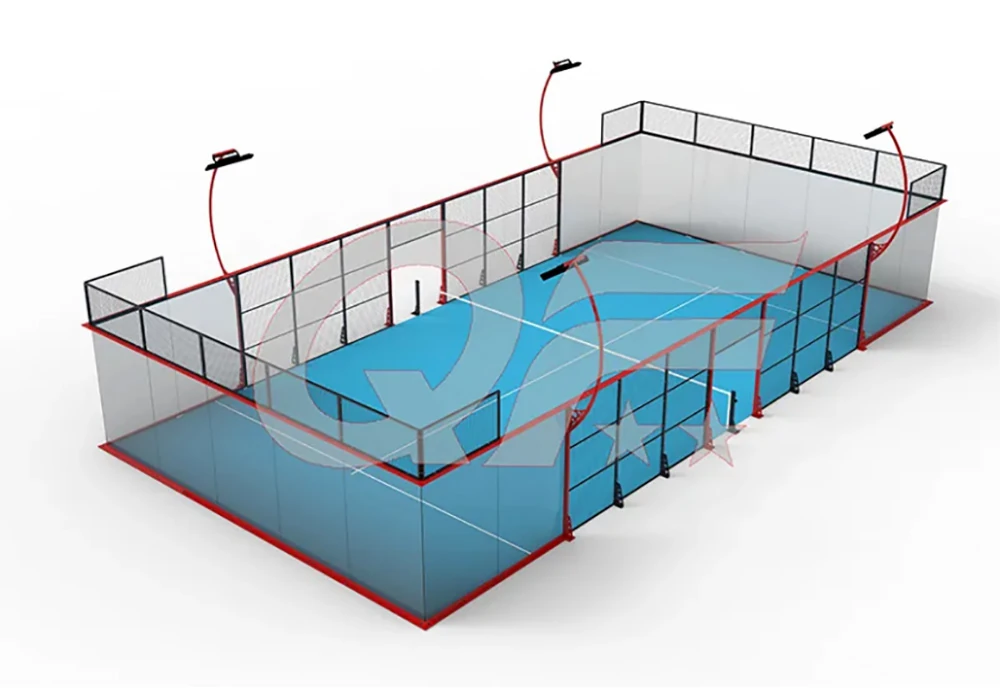

Integrated LED Lighting for Better Nighttime Visibility
PD14 comes with an integrated linear LED lighting system that combines lighting functionality with the court structure.
The four 400W linear LED light units operate at an input voltage of 220V. The lighting poles measure 40 × 80 mm. By integrating the lighting system into the court design, the solution avoids the visual interference and additional space occupation that can be associated with conventional standalone lighting poles.
The linear LED configuration is designed to provide more even illumination across the playing area. This helps create a better visual environment for nighttime play while maintaining the clean appearance of the panoramic court.
For facilities aiming to support extended operating hours, integrated lighting is an important consideration when planning an outdoor padel court or other commercial padel facility.

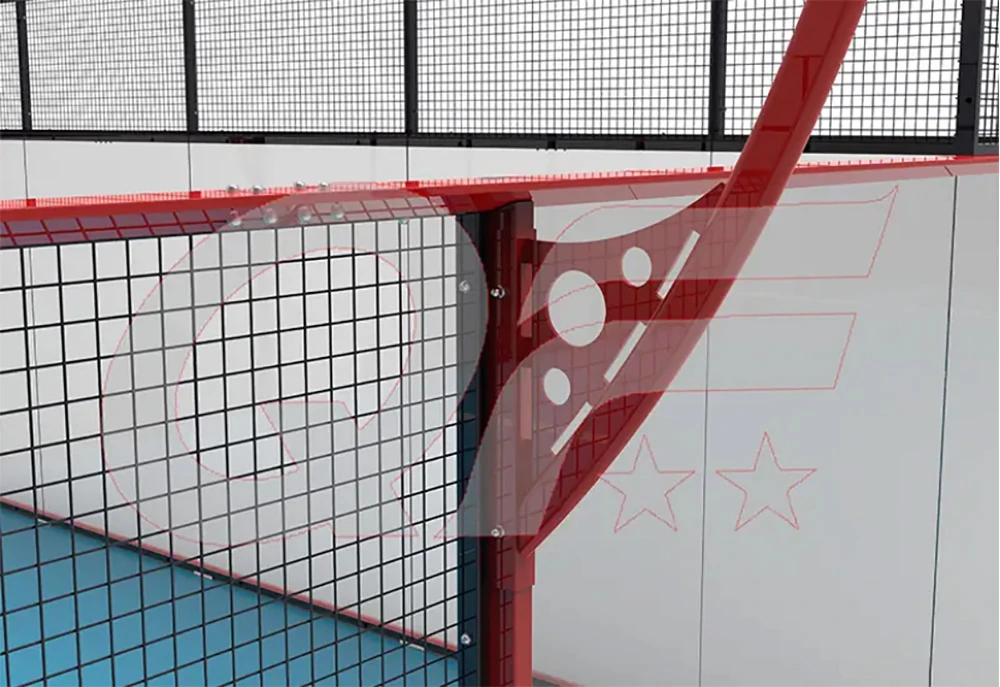

Special-Shaped Steel Pipe Structure for Distinctive Court Design
The PD14 uses specially shaped steel pipes instead of conventional rectangular steel tubes.
Its main support beams use 50 × 150 × 3.0 mm high-quality special-shaped steel pipes, while the main support columns use 50 × 100 × 3.0 mm high-quality steel pipes. The net frame beams also use 50 × 150 × 3.0 mm high-quality special-shaped steel pipes.
The mesh frame uses 30 × 50 × 2.0 mm high-quality steel tubes, with a welded mesh wire diameter of 4 mm and a mesh opening of 50 × 50 mm.
The special cross-section and structural proportions give the court a distinctive visual identity while supporting the overall stability and durability requirements of the structure.
For projects where a padel court needs to become part of the visual identity of a commercial or hospitality environment, this type of structural design can provide a stronger architectural presence than a conventional court frame.

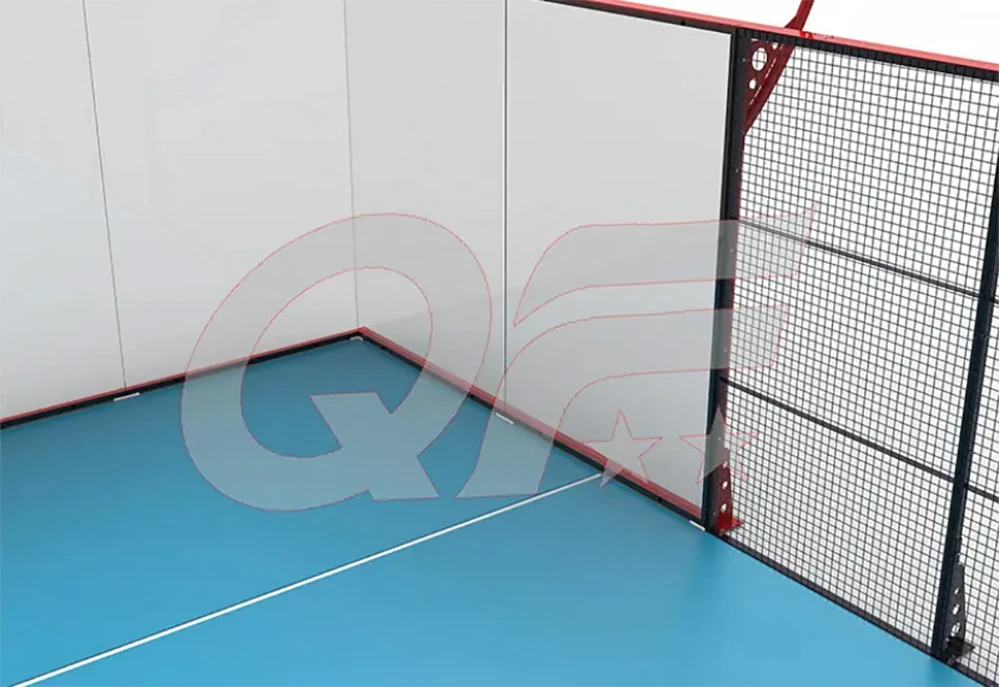

Panoramic Tempered Glass for Enhanced Visibility
The PD14 uses 12 mm thick tempered glass panels measuring 2995 × 1995 mm, with 18 panels in total.
The panoramic glass walls create a more open visual environment around the playing area. Spectators can maintain a clear view of the match, while players benefit from an open field of vision during play.
This combination of special-shaped steel structure and panoramic glass is particularly appropriate for commercial facilities where spectator visibility and overall presentation are important considerations.
Benefits of a Special-Shaped Steel Pipe Panoramic Padel Court
Improved Safety and Structural Stability
Structural design is a critical part of padel court construction. PD14 combines specially shaped steel pipe components with concealed screw connections and 12 mm tempered glass to create an integrated court structure.
The overall external dimensions of the court are 20.32 m × 10.32 m × 5.98 m, which should be considered during site planning and installation preparation.
The concealed connection design also reduces externally protruding components, helping create a cleaner and safer court environment.
Modern Design for Premium Commercial Spaces
A padel court is often more than a sports facility. In hotels, resorts, commercial complexes, and premium clubs, it can also contribute to the overall visual identity of the property.
PD14’s special-shaped steel pipe structure, panoramic glass walls, and integrated linear LED lighting create a contemporary appearance without relying on additional decorative structures.
This makes the court suitable for projects where design quality and visual integration are important purchasing considerations.
Better Visibility and Spectator Experience
The panoramic glass configuration provides a relatively open visual environment around the court. This is valuable for commercial padel clubs and hospitality facilities where spectators may watch matches from outside the playing area.
For facility operators, better visibility can also make the court more visually attractive within a larger commercial or leisure environment.
Customizable Design for Different Installation Environments
PD14 supports customization. For B2B buyers, customization capability is particularly relevant when a standard court configuration does not fully match the available site or project design requirements.
PD14 Panoramic Padel Court Specifications
| Specification | PD14 Parameters |
| Internal Playing Area | 20 m × 10 m |
| Overall External Dimensions | 20.32 m × 10.32 m × 5.98 m |
| Main Support Beams | 50 × 150 × 3.0 mm high-quality special-shaped steel pipe |
| Main Support Columns | 50 × 100 × 3.0 mm high-quality steel pipe |
| Frame Beams | 50 × 150 × 3.0 mm high-quality special-shaped steel pipe |
| Mesh Frame | 30 × 50 × 2.0 mm high-quality steel tube |
| Welded Mesh Wire Diameter | 4 mm |
| Mesh Opening | 50 × 50 mm |
| Tempered Glass | 12 mm thick, 2995 × 1995 mm, 18 panels |
| Artificial Grass Height | 12 mm |
| Artificial Grass Color | Blue (optional) |
| Artificial Grass Density | 50,400 |
| Lighting | Four 400W linear LED light units |
| Lighting Input Voltage | 220V |
| Lighting Pole Size | 40 × 80 mm |
Applications of Special-Shaped Steel Pipe Panoramic Padel Courts
Commercial Padel Clubs
Commercial padel clubs require courts that combine playing functionality with a professional appearance. The panoramic glass structure, integrated lighting, and distinctive steel framework make PD14 suitable for commercial environments where both player experience and facility presentation matter.
Hotels and Resorts
Hotels and resorts often integrate sports facilities into broader leisure and hospitality environments. The modern appearance of the PD14 can complement premium outdoor spaces while providing a dedicated padel facility for guests and visitors.
Rooftop Padel Courts
Rooftop facilities typically require careful consideration of structural design, available space, and environmental exposure. The PD14 has an overall external dimension of 20.32 m × 10.32 m × 5.98 m, which can be considered during preliminary rooftop project planning. Final installation should be evaluated according to specific site conditions and project requirements.
Commercial Complexes and Urban Spaces
Because the PD14 has a distinctive structural appearance and panoramic configuration, it can function as a visible sports feature within commercial complexes and urban leisure spaces.
Its integrated LED lighting also allows the court to maintain a clean appearance during evening operation.
Private and Premium Leisure Facilities
For premium private facilities where design and visual quality are important, the special-shaped steel pipe structure provides an alternative to conventional padel court designs.
Choosing the Right Padel Court Supplier
Selecting the right padel court supplier involves more than comparing price and appearance. B2B buyers should consider manufacturing capability, product quality, customization support, and experience with international projects.
The PD14 Special-Shaped Steel Pipe Panoramic Padel Court is manufactured by HEBEI QIFAN SPORTS INDUSTRY CO., LTD, established in 2013. With a 46,000-square-meter manufacturing facility and more than 220 employees, including experienced engineers and designers, QIFAN integrates product development, manufacturing, and global sales.
With expertise in Padel courts, football fields, and professional flooring, QIFAN has completed projects in more than 50 countries. The company continues to invest in automated production lines, laser-cutting technology, and smart warehouse management, supporting consistent manufacturing quality and reliable solutions for international sports facility projects.
Frequently Asked Questions About Special-Shaped Steel Pipe Panoramic Padel Courts
What is a special-shaped steel pipe panoramic padel court?
It is a padel court that uses specially shaped steel pipe components for its main structural framework and panoramic tempered glass for the court walls. The PD14 also incorporates concealed screw connections and integrated LED lighting.
What are the benefits of using special-shaped steel pipes for a padel court?
Special-shaped steel pipes provide a distinctive structural appearance and can help optimize the overall structural configuration. In the PD14, they are used for the main support beams and frame beams, while the main support columns use high-quality steel pipes.
Is the PD14 suitable for outdoor padel court applications?
PD14 can be considered for outdoor applications, with a stated wind load capacity of up to 120 km/h. However, actual installation should be evaluated according to specific site conditions and project requirements.
Can the PD14 panoramic padel court be customized?
Yes. PD14 supports customization. The internal playing area is 20 m × 10 m, and the artificial grass is 12 mm high with blue available as an optional color. The frame and other components can be configured according to project requirements.
Conclusion
The PD14 Special-Shaped Steel Pipe Panoramic Padel Court combines distinctive structural design, panoramic visibility, integrated LED lighting, and defined dimensions and component specifications for commercial padel projects. Its special-shaped steel pipe frame and concealed connection design also provide a clean, modern appearance suited to clubs, hotels, resorts, and other premium facilities.
For B2B buyers planning padel court construction, choosing an experienced padel court supplier is equally important as selecting the right court design. With its manufacturing capabilities, customization support, and international project experience, HEBEI QIFAN provides PD14 and other padel court solutions for different commercial applications.
Contact QIFAN to discuss your padel court project, customization requirements, and technical specifications.
