Building a padel court on uneven or sloped ground requires more than simply choosing the right court structure. The foundation must provide a level platform while adapting to the actual conditions of the site. For clubs, hotels, resorts, and commercial developments, extensive ground leveling may not always be the most practical approach.
An adjustable modular foundation can provide another option. By using individually adjustable support feet and a modular steel structure, the foundation can compensate for differences in ground elevation and create a level platform for the court.
This guide explains what to consider when building a padel court on uneven ground, how to choose a suitable padel court builder, and how an adjustable modular foundation system can be used for these projects.
Can You Build a Padel Court on Uneven Ground?
Yes, a padel court can be built on uneven or sloped ground if the foundation can accommodate differences in elevation. The key is to create a level base for the court without having to level the entire site. An adjustable foundation can do this by allowing the support feet to be set at different heights to match the existing ground. This can reduce the amount of ground leveling required and give builders more flexibility when working with sites that are sloped or uneven. The foundation design should be selected based on the actual site conditions, court model, and installation requirements.
How to Choose a Padel Court Manufacturer for an Uneven Site
Site Assessment and Foundation Design
A suitable manufacturer should be able to assess the site and develop a foundation design based on its actual conditions. This includes considering the site location, ground conditions, number of courts, and selected court model before production begins. For an uneven site, the manufacturer should also be able to determine how the foundation needs to be designed to accommodate differences in ground level.
Foundation Customization
A suitable manufacturer should be able to customize the foundation when a standard configuration does not fully meet the project requirements. The design may need to be adjusted according to the court dimensions, structural requirements, or specific site conditions. This gives the project more flexibility when the standard foundation configuration is not suitable.
Installation and Technical Support
Ask what support is available after the foundation is manufactured. Clear installation instructions, delivery support, and technical assistance can make it easier for the project team to assemble the foundation and complete the padel court installation.
Padel Court Modular Foundation System by Qifan

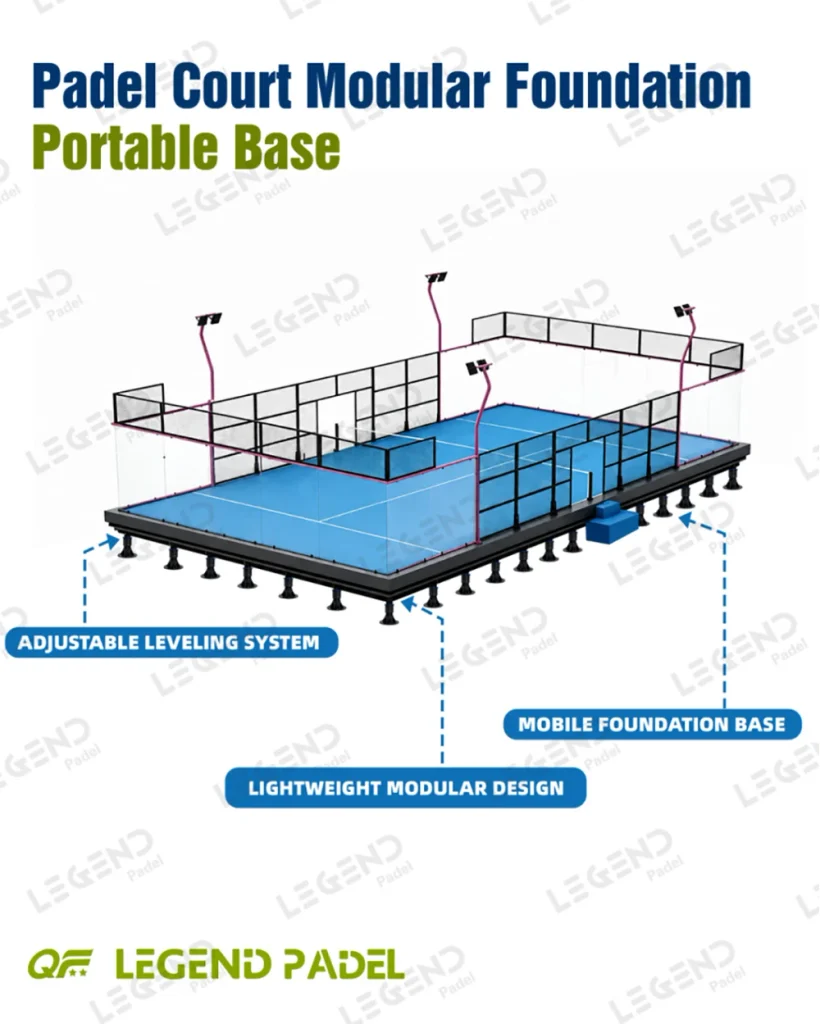

Qifan’s Padel Court Modular Foundation System is designed specifically for uneven and sloped ground. The system uses adjustable support feet and a modular steel foundation structure to help create a level foundation platform without relying entirely on extensive ground leveling.
The standard configuration is designed for the QF-BQ04 Padel Court, while customized configurations are available for other padel court models.
150–800 mm Adjustable Support Feet
The support feet have an adjustment range of 150–800 mm. Their height can be adjusted individually according to the actual ground conditions.
This allows the foundation to compensate for differences in ground elevation and helps create a level platform for the padel court.
For a project with varying ground levels, this adjustable range provides flexibility when positioning the foundation.
Modular Steel Foundation Structure
The foundation uses a welded modular steel framework consisting of several structural components:
- Outer frame: 50 × 150 × 3.0 mm high-quality steel tube
- Internal beams: 40 × 80 × 3.0 mm high-quality steel tube
- Purlins: 30 × 50 × 2.0 mm high-quality steel tube
The modular steel structure is designed to provide stable support for the padel court while allowing the foundation to be assembled according to the project configuration.
30 Modular Frames for On-Site Assembly
One complete foundation consists of 30 modular steel frames. The frames are assembled on site and connected using 304 stainless steel fasteners.
The modular design also makes transportation more convenient and provides greater flexibility during installation.
140 × 20 mm Solid Plastic Board Surface
A 140 × 20 mm high-quality solid plastic board is installed across the steel foundation frame.
These boards form the foundation surface for the padel court and sit above the steel framework and adjustable support feet.

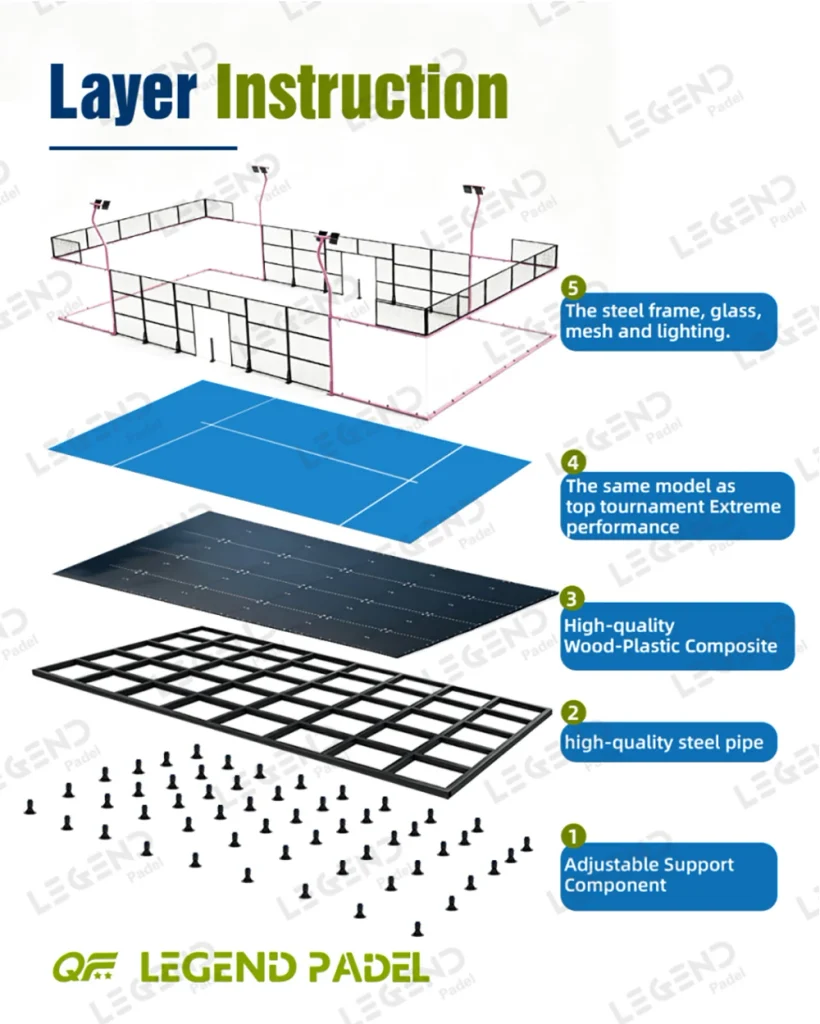

The complete foundation structure can therefore be understood as a layered system: the existing ground supports the adjustable feet, the feet support the steel foundation frame, and the solid plastic board forms the upper foundation surface for the court.
Standard and Customized Padel Court Configurations
The standard configuration is designed for the QF-BQ04 Padel Court.
For other padel court models, the foundation can be customized according to court dimensions, structural requirements, and specific project conditions. This makes the system suitable for projects where the standard configuration does not directly match the selected court.
How to Install a Padel Court on Uneven Ground
The installation process should begin with the site rather than the court itself. The foundation needs to be positioned and leveled according to the actual ground conditions before the padel court is installed.
Step 1: Assess the Site Conditions
First, provide the project location, ground conditions, number of courts, and preferred court model. The site and foundation requirements can then be evaluated.
Step 2: Position and Connect the Foundation Modules
The modular foundation frames are positioned according to the planned configuration and connected using 304 stainless steel fasteners.
Step 3: Adjust the Support Feet
The support feet are individually adjusted according to the elevation differences of the existing ground. The adjustment range is 150–800 mm.
Step 4: Level the Foundation
After adjusting the support feet, the foundation is leveled to create a suitable platform for the padel court.
Step 5: Install the Padel Court
Once the foundation is properly positioned and leveled, the padel court can be installed on the completed foundation platform.
The process can be summarized as:
Position the modules → Connect the frames → Adjust the support feet → Level the foundation → Install the padel court.
Frequently Asked Questions About Padel Court Foundations
Can a Padel Court Be Built on Uneven Ground?
Yes. The Padel Court Modular Foundation System is designed for uneven and sloped ground. Its adjustable support feet help compensate for differences in ground elevation and create a level foundation platform.
What Is the Adjustment Range of the Foundation?
The adjustable support feet have a height adjustment range of 150–800 mm.
Can the Foundation Be Customized for Different Padel Court Models?
Yes. The standard configuration is designed for the QF-BQ04 Padel Court, while other models can be customized according to their dimensions, structural requirements, and project conditions.
Does an Uneven Site Require Extensive Ground Preparation?
An adjustable foundation can reduce the need for extensive ground leveling by compensating for elevation differences through individually adjustable support feet. However, the actual site and foundation requirements should still be evaluated before installation.
Conclusion
Building a padel court on uneven ground starts with choosing a foundation solution that matches the site. Instead of relying entirely on extensive ground leveling, an adjustable modular system can compensate for elevation differences and help create a level foundation platform.
Qifan’s Padel Court Modular Foundation System combines 150–800 mm adjustable support feet, a modular steel structure, 30 modular frames, and a 140 × 20 mm solid plastic board surface. With a standard configuration for the QF-BQ04 Padel Court and customization available for other models, it provides a flexible foundation option for uneven and sloped sites. If your project has an uneven or sloped site, Qifan can assess the ground conditions and discuss the foundation requirements with you. Share your court model and site details with us to see how the modular foundation can be configured for your project.
